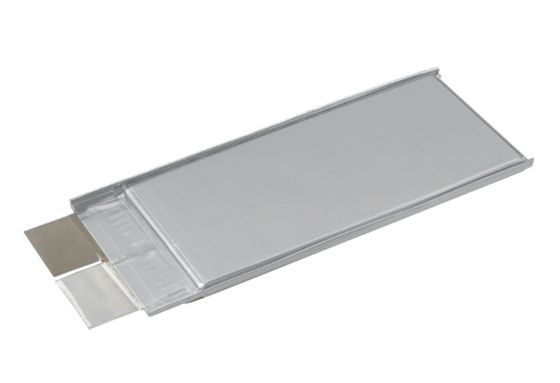

Rechargeable LiFePO4 Lithium Battery Pouch Cell LFP 3.2V 2Ah For Motorcycle Electric Bike

1000
MOQ
Rechargeable LiFePO4 Lithium Battery Pouch Cell LFP 3.2V 2Ah For Motorcycle Electric Bike
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Ονομαστική χωρητικότητα:
Ονομαστική τάση: 3.2V
Εσωτερική αντίσταση: ≤3MΩ
Ζωή με κύκλο: ≥6000Cycle @25 ° ℃ 1C 100%DOD, 80%SOH
Θερμοκρασία εργασίας: -40 ° ℃ ~+60 ℃
Μέγιστη τάση φόρτισης: 3.65V
Πρότυπο ρεύμα φόρτισης: 0,5C
Επισημαίνω:

Rechargeable LiFePO4 lithium battery 3.2V

,

LFP pouch cell for electric bike

,

Motorcycle lithium battery with 2Ah capacity

Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: Ecolite
Αριθμό μοντέλου: LFP 6541120
Πληρωμής & Αποστολής Όροι
Περιγραφή προϊόντων

   Rechargeable LiFePO4 Lithium Battery Pouch Cell LFP 3.2V 2Ah For Motorcycle Electric Bike

Global leading lithium pouch cell supplier offering lithium ion pouch cells with stable performance and long cycle life. Our lithium pouch cells utilize the LFP cells technology, which can achieve more than 6000 cycle life at 100% DOD.

Specfication

Basic parameters
Nominal capacity 2A6
Nominal voltage 3.2V
Internal resistance ≤3mΩ
Cycle life ≥6000cycle @25°℃ 1C 100%DOD,80%SOH



Charging parameters
Maximum charging voltage 3.65V
Standard charging current 0.5C
Maximum continuous charging current 5C(10A)



Discharge parameters
Discharge cut-off voltage 2.5V
Standard discharge current 1C
Maximum continuous discharge current 10C(20A)
Pulse discharge current 150C(3s)



Temperature range
Working temperature
-40°℃~+60℃



FEATURES
High charging and discharging rate, supports 5C chargingand 10c discharging;

Wide operating temperature range, supports charge anddischarge from -40'C~60°C;

Long cycle life:>6000cycle @25'C 1C 100%DOD,80%SOH

High safety: no smoke, no fire, no explosion.



Longer service life
Built with advanced LFP pouch cell technology, Tianneng lithium-ion battery pouch cells deliver over 6000 cycles at 100% depth of discharge, which means fewer battery replacements, lower long-term costs, and more worry-free mileage.



Wide operating temperature range
Charging: 0~45°C, discharging: -40~60°C ,Storage: -10~45℃ Tianneng LiFePO4 pouch cells stay dependable in all seasons. Whether you're riding in winter or storing energy under high temperatures, the cells guarantee consistent output.







Stable performance
 LiFePO4 Lithium Battery pouch cells achieve a specific energy density of up to 162 Wh/kg. Automated pouch cell manufacturing high-quality cell. Every Tianneng pouch battery cell provides a longer usage time in a lighter pack for e-bikes, scooters, or portable energy systems.







ECOLITE help users solve common problems such as short battery life, poor low-temperature performance, and frequent maintenance. Tianneng's LFP soft-pack batteries are designed for efficient operation of electric two-wheelers/three-wheelers, light electric vehicles, and energy storage systems. Our lithium-ion soft-pack batteries offer stable output, long cycle life, and wide temperature adaptability, ensuring safer and more reliable power.
