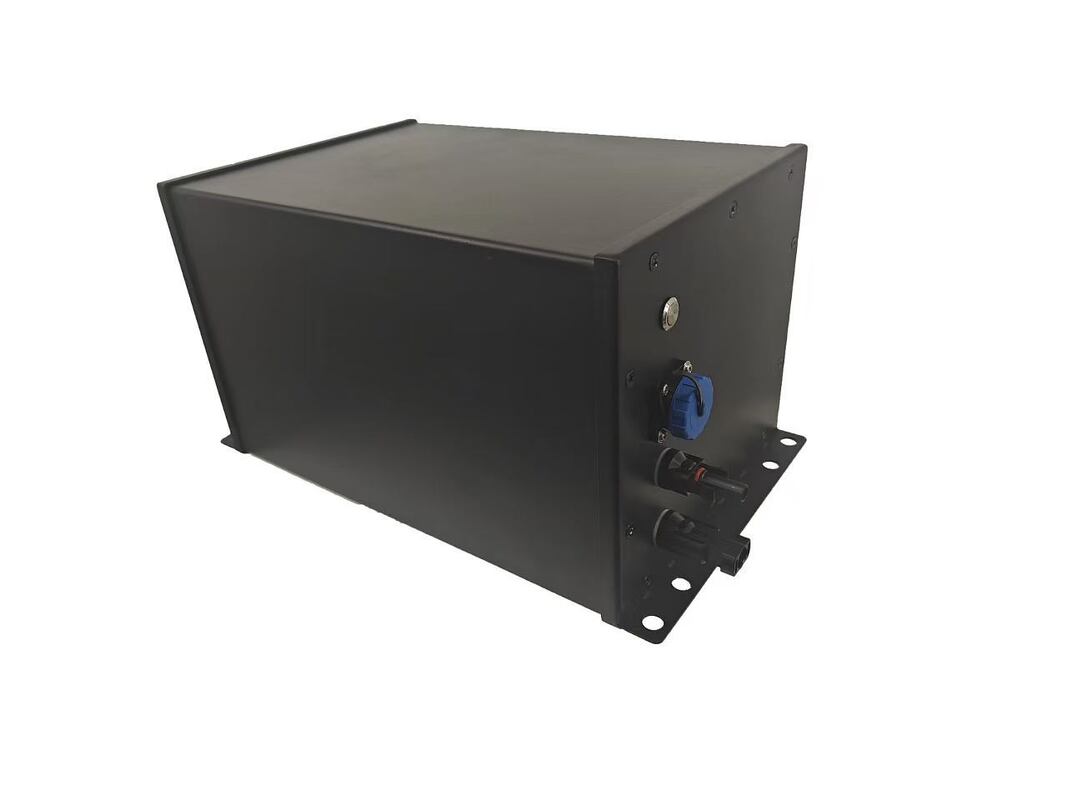

25.6V 200Ah LiFePO4 Battery 5.1kWh 6000 Cycles 200A Continuous IP65 Bluetooth

25.6V 200Ah LiFePO4 Battery 5.1kWh 6000 Cycles 200A Continuous IP65 Bluetooth

Powerful 24V Energy Storage
This 25.6V 200Ah LiFePO4 battery stores 5120 watt hours of energy, making it ideal for 24V solar systems, RVs, marine applications, and industrial equipment. With 6000 cycles at 100% depth of discharge (retaining >80% capacity), it outlasts lead acid batteries by more than ten times. The integrated BMS protects against overcharge, over discharge, overcurrent, short circuit, and temperature extremes. Bluetooth connectivity allows real time monitoring from a smartphone.

Core Electrical Specifications
Nominal voltage is 25.6V with 200Ah rated capacity and total energy of 5120Wh. Internal resistance is ≤20 milliohms. Efficiency reaches 98 percent. Self discharge is less than 5 percent per month. The battery uses 8 cells in series with 1 parallel string (8S1P). Dimensions are 520mm length, 269mm width, and 220mm height. Weight is 40 kilograms. Terminal type is M8. Housing is ABS with IP65 dust and water jet protection. Bluetooth communication is built in.

Discharge Performance
Continuous discharge current is 200 amps, suitable for powering inverters up to 4800W. Pulse discharge current reaches 400 amps for less than 1 second, handling surge loads from motors, pumps, and compressors. BMS discharge cut off voltage is 20V with reconnect at 21.6V. Recommended voltage disconnect is 20V. Short circuit protection activates within 100 to 400 microseconds.

Charge Parameters
Charging uses the CC CV method with charge voltage range of 28.4V to 29.2V. Recommended float voltage at full charge is 26.6V to 26.8V. The recommended charge current is 100 amps for optimal cycle life, while the maximum charge current is 200 amps for faster charging. BMS charge cut off voltage is set to 29.6V.

Cycle Life and Longevity
Rated for over 6000 cycles at 100 percent depth of discharge while retaining over 80 percent of original capacity (tested at 25°C, 0.5C charge/discharge). For daily cycling, this provides over 16 years of service. The low internal resistance (≤20mΩ) minimizes heat generation and energy loss during high current operation.

Temperature Range
Discharge temperature range is -20°C to 60°C. Charge temperature range is 0°C to 60°C. Storage temperature range is -10°C to 35°C. BMS high temperature cut off is set to 65°C.

Bluetooth Monitoring
Built in Bluetooth allows connection to a smartphone app. View battery voltage, current, state of charge, temperature, and cycle count in real time. Set alerts for low voltage or high temperature. No additional hardware needed for basic monitoring.
